In the underground of modern cities, intricate water supply pipelines are like the city's blood vessels, continuously delivering clean tap water to residents. However, with the passage of time, changes in geological conditions, and the aging of the pipeline itself, water supply pipeline leakage problems occur from time to time. pipeline leak detector， As a high-tech device specifically designed to detect leaks in water supply pipelines, it is playing an increasingly important role and becoming the "vanguard" guarding the lifeline of urban water supply.
1、 The working principle of pipeline leak detector
The pipeline leak detector is mainly based on acoustic principles and related sensor technologies to detect leakage points. When a water supply pipeline leaks, water is sprayed out from the leak point under pressure, producing a specific frequency and intensity of sound wave signals. The detector captures these acoustic signals through high-precision sensors and analyzes and identifies them using advanced signal processing algorithms.
Some detectors are also equipped with other auxiliary detection methods, such as pressure sensors, flow sensors, etc. By monitoring pressure changes and abnormal water flow within the pipeline, the accuracy and reliability of leak detection can be further improved. For example, when a leak occurs in a pipeline, the pressure near the leak point will rapidly decrease and the flow rate will fluctuate. These changes in information are collected by detectors and combined with acoustic detection data to more accurately locate the leak point.
2、 Main types and characteristics of pipeline leak detectors
1. Handheld pipeline leak detector
This is a common and easy to operate type. It is usually compact in size, lightweight, and convenient for inspectors to carry to different testing sites. Handheld detectors are generally equipped with highly sensitive acoustic probes that can directly contact the surface of pipelines or indirectly receive acoustic signals through the ground. Its operation interface is simple and intuitive, and the detection personnel can view real-time information such as sound wave waveform and frequency through the display screen, and track the leakage point based on the signal strength indication. This type of detector is suitable for rapid investigation of local areas or suspected leakage points, and is widely used in places with relatively concentrated water supply pipelines and complex environments such as residential areas and inside buildings.
2. Vehicle mounted pipeline leak detector

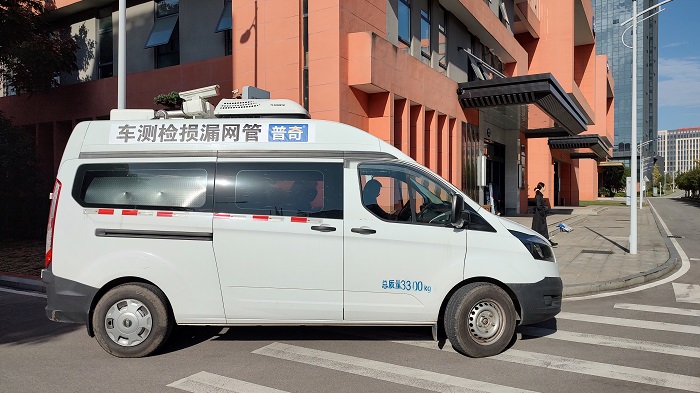

Vehicle mounted detectors have stronger detection capabilities and coverage range. It integrates multiple high-performance sensors onto the vehicle and is equipped with professional signal processing systems and data storage devices. During the inspection, the vehicle slowly travels along the route of the water supply pipeline, and the detector scans a large area of the underground pipeline through the sensor array under the vehicle. Vehicle mounted systems can simultaneously process a large amount of detection data, not only detecting small leakage points, but also quickly inspecting long-distance water supply pipelines. Its advantage lies in its high detection efficiency, which is suitable for areas where water supply pipelines are widely distributed and need to be quickly screened for leaks, such as urban main roads and large industrial areas. However, due to the complexity and high cost of the equipment, it is usually used by professional water supply pipeline maintenance departments or inspection agencies.
3. Distributed fiber optic sensor pipeline leak detector
This is a new type of leak point detector based on fiber optic sensing technology. It uses optical fibers laid along the water supply pipeline as sensing media. When the pipeline leaks, the temperature, pressure, or sound wave changes caused by the leakage will cause corresponding changes in the optical signal transmitted in the optical fiber. By real-time monitoring and analysis of optical signals, distributed monitoring of the entire pipeline can be achieved, and the location of leakage points can be accurately located. Distributed fiber optic sensors have advantages such as long detection distance, strong anti-interference ability, and the ability to achieve real-time online monitoring. It is particularly suitable for monitoring long-distance, large-diameter water supply pipelines, such as water transmission trunk lines between cities. However, the initial investment in this technology is relatively high, including the cost of fiber optic installation and supporting monitoring equipment, and the professional requirements for technical personnel are also high.
3、 Application scenarios of pipeline leak detector in water supply pipeline maintenance
1. Daily inspection and preventive maintenance
The water company regularly uses leak detectors to inspect the water supply pipelines, which can detect and repair leaks in a timely manner before the problem worsens. This preventive maintenance measure can effectively reduce the waste of water resources, lower the risk of secondary disasters such as ground collapse and road damage caused by pipeline leaks, and also help ensure the stable operation of the water supply system and improve the quality of water supply services. For example, in the old urban areas of cities, regular leak detection is particularly important due to the long service life of water supply pipelines. Through regular inspections of detectors, potential small leakage points can be detected in a timely manner, avoiding their development into large-scale leakage accidents and ensuring the normal water supply of residents in the old city area.
2. Quick location and repair of leakage points
After receiving reports from users about possible pipeline leaks such as abnormal water pressure and water stains on the ground, maintenance personnel can quickly rush to the scene with the help of pipeline leak detectors and accurately locate the leak point in a short period of time. This greatly shortens the repair time and reduces the impact on residents' water use. Taking a newly built residential area in a certain city as an example, during the initial period of occupancy, some residents reported low water pressure at home. The maintenance personnel of the water supply company used handheld leak detectors to inspect the water supply pipelines in the community, and soon discovered a small leak at an underground pipeline connection. Due to accurate positioning, maintenance personnel quickly carried out repairs, restoring normal water supply for residents in the community and receiving high praise from them.
3. Construction and acceptance of large-scale water supply projects
In the construction process of large-scale water supply projects, such as the laying of new urban water supply pipelines or the expansion and renovation of water supply systems, pipeline leak detectors can be used for acceptance testing of newly built pipelines. By using detectors for comprehensive testing during the pipeline pressure test phase, it is possible to ensure that there are no potential leaks in the pipeline before it is put into use, thereby ensuring the quality of the project. For example, in a major water supply project construction in a certain city, the construction party conducted strict acceptance testing on tens of kilometers of water supply pipelines using vehicle mounted leak detectors after the pipeline laying was completed. After multiple rounds of testing, no obvious leaks were found, ensuring the smooth operation of the water supply project and providing reliable water supply guarantee for the development of the city.
4、 The development trend and challenges of pipeline leak detectors
With the continuous advancement of technology, pipeline leak detectors are also constantly developing and innovating. In the future, its development trend will mainly be reflected in the following aspects:
1. Improved level of intelligence and automation
The detector will become more intelligent, capable of automatically analyzing detection data, adjusting detection modes and algorithms based on different pipeline materials, diameters, water pressures, and other parameters, achieving one click operation and automatic generation of detection reports. At the same time, combined with Internet of Things technology, the detector can be interconnected with the water supply management system, upload detection data in real time, facilitate the water supply department to timely grasp the operation status of the pipeline, and achieve remote monitoring and management.
2. Multi technology integration and multifunctional integration
In order to improve the accuracy and reliability of leak detection, future pipeline leak detectors will integrate multiple detection technologies such as acoustics, optics, electromagnetics, etc., fully leveraging the advantages of each technology and achieving complementarity. In addition, the detector will integrate more functions such as pipeline positioning, pipeline anti-corrosion layer detection, water quality monitoring, etc., becoming a multifunctional pipeline detection platform, providing richer data support for the comprehensive maintenance of water supply pipelines.
3. Miniaturization and portability
Although vehicle mounted detectors have advantages in large-scale inspections, small-sized and portable detectors are more adaptable for detecting special environments such as narrow spaces and mountainous areas. Therefore, developing handheld or portable leak detectors with smaller size, lighter weight, and better performance will still be an important development direction, so that detection personnel can carry and operate them more conveniently, and improve the flexibility of detection work.
However, pipeline leak detectors also face some challenges in their development process. Firstly, the continuous updating and upgrading of technology requires a large amount of research and development investment, which may be a significant burden for some small enterprises or water supply departments with limited funds. Secondly, the accuracy and reliability of the detector are also affected by various factors, such as environmental noise, geological conditions, and pipeline complexity. How to further improve the detection performance of detectors in complex environments is still a technical challenge that needs to be overcome. In addition, with the continuous expansion of the application scope of detectors, relevant standards, specifications, and operator training systems also need to be further improved to ensure the correct use of detectors and the accuracy and comparability of detection results.
Pipeline leak detector, as an important technical means to ensure the safety of urban water supply, plays an indispensable role in modern urban construction and operation. With the continuous development and innovation of technology, it will demonstrate more powerful functions and broader application prospects in the field of water supply pipeline maintenance, providing solid guarantees for the sustainable development of cities and the beautiful life of residents.
