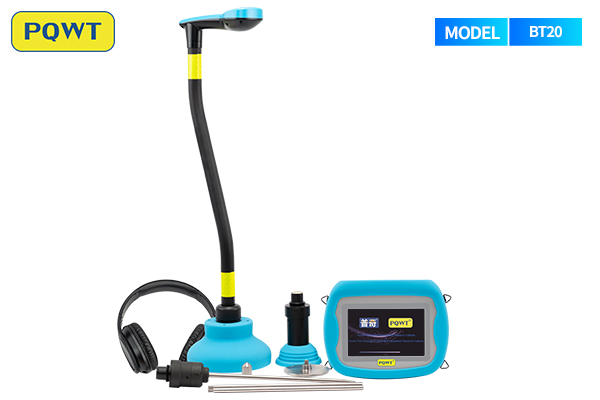

PQWT BT20 High quality pipeline locator 9m deep underground water leak detector
Customized support
OEM, Software reengineering, Pipeline, Water, Leak
Place of Origin
Hunan, China
Product name
PQ-BT20 Pipe Leak Detector and Locator
Application
Industrial Pipe Leak Detection
Power supply
Rechargeable Lithium Battery
Keyword
Pipes Leak Detector
Working temperature
-20℃~+50℃
Usage
Auto Testing Machine
Function
Underground leak detector and pipe locator

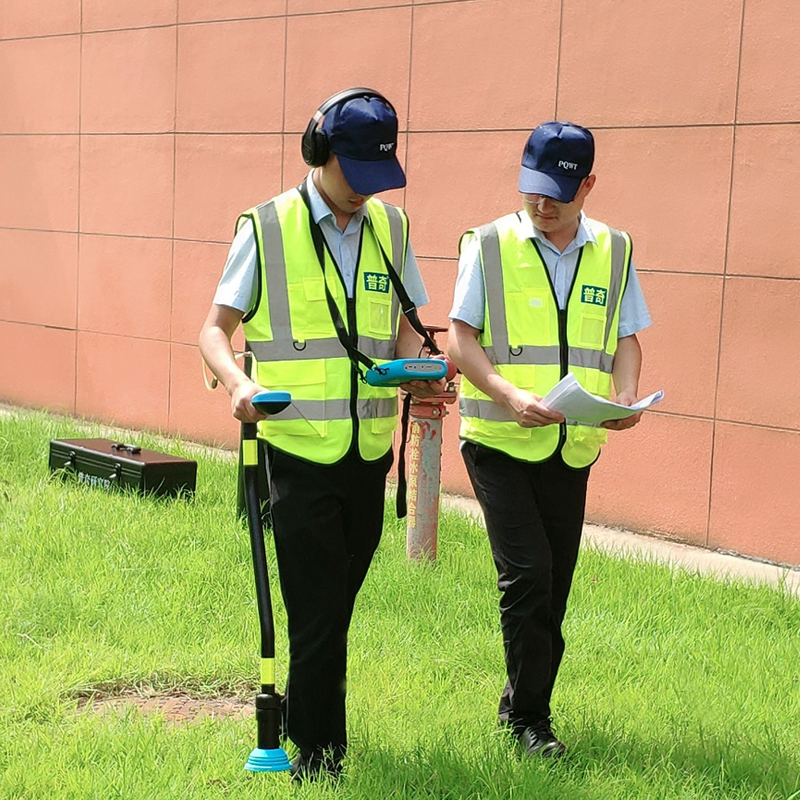

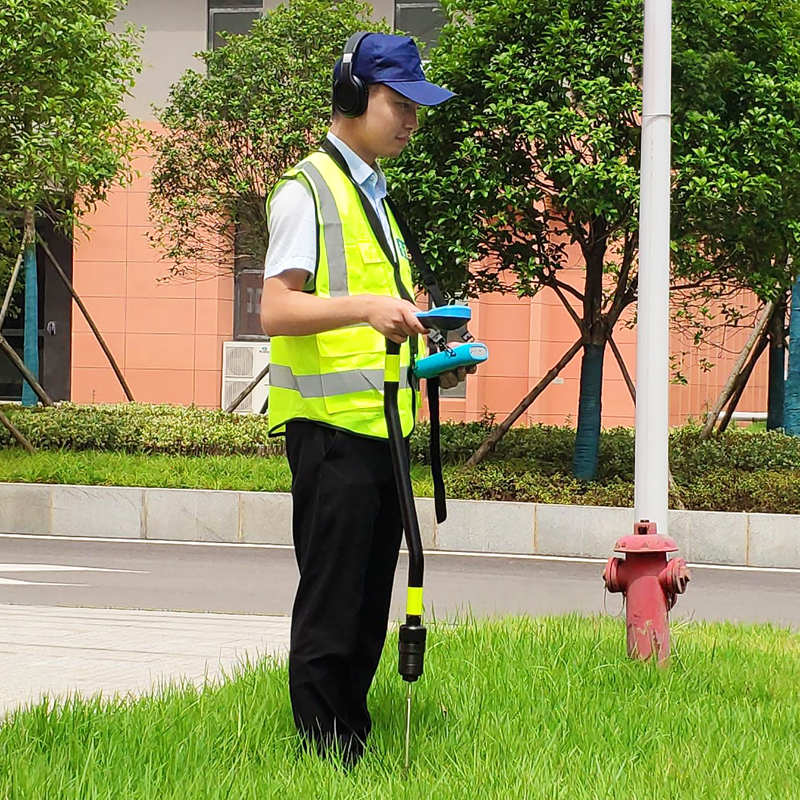

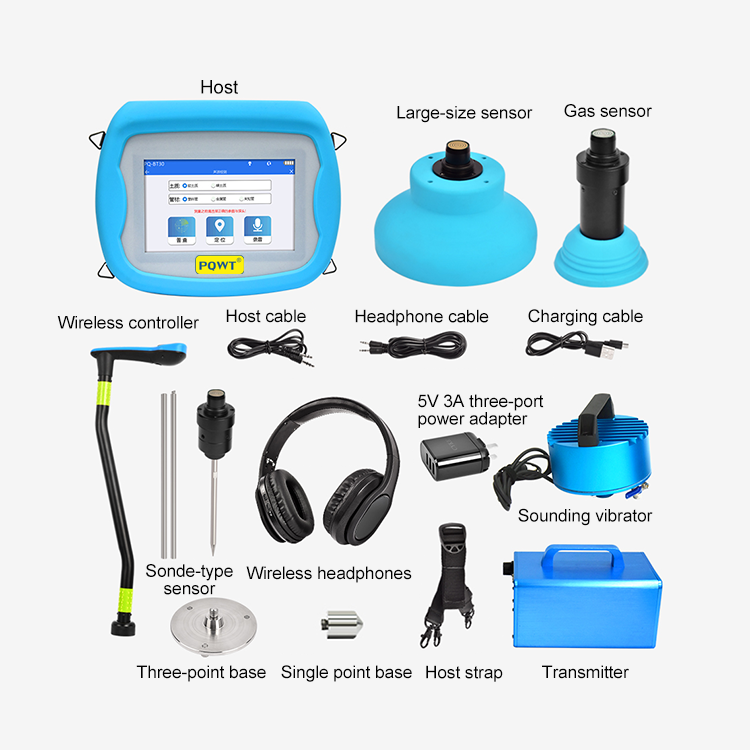

PQ-BT series multi-function wireless leak detector is a new generation of multi-function wireless leak detector independently researched and developed by our institute, which integrates three functions of gas detection, sound wave detection, and pipe-finding and positioning. The collection and analysis of the sound signal or the gas at the leakage of the pipeline can effectively and conveniently solve the leakage problem of the pressure pipeline of the external network. It is suitable for the detection and inspection of the leakage of the tap water, fire protection and heating pipes of the external network and the direction of the pipes.
Features
1. Simple operation and easy to carry;
2. Wireless audio transmission, compatible with wired.
3. All pass by and signal processing to ensure the authenticity of the sound signal;

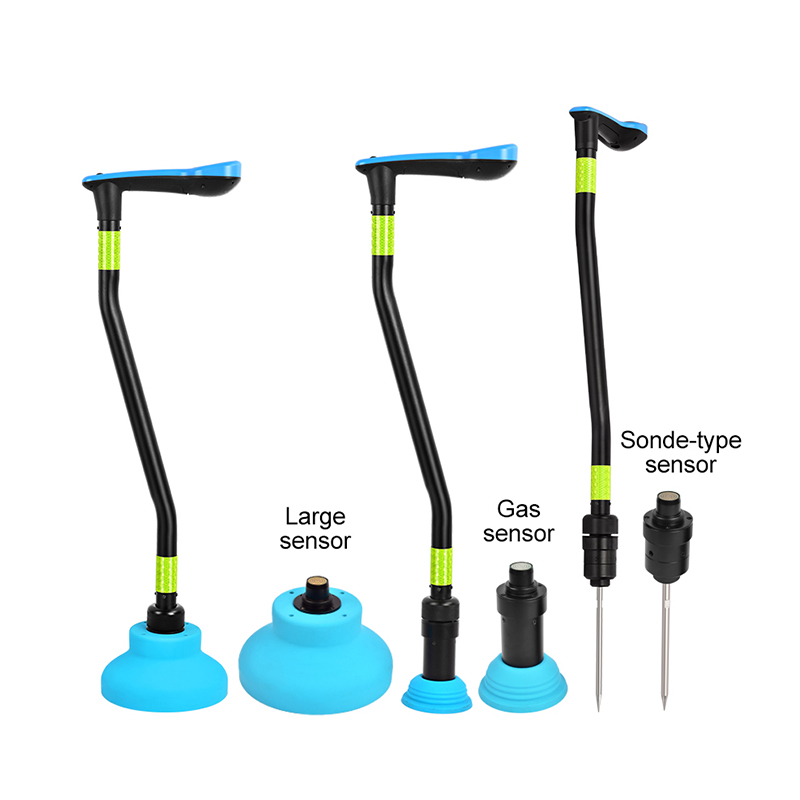

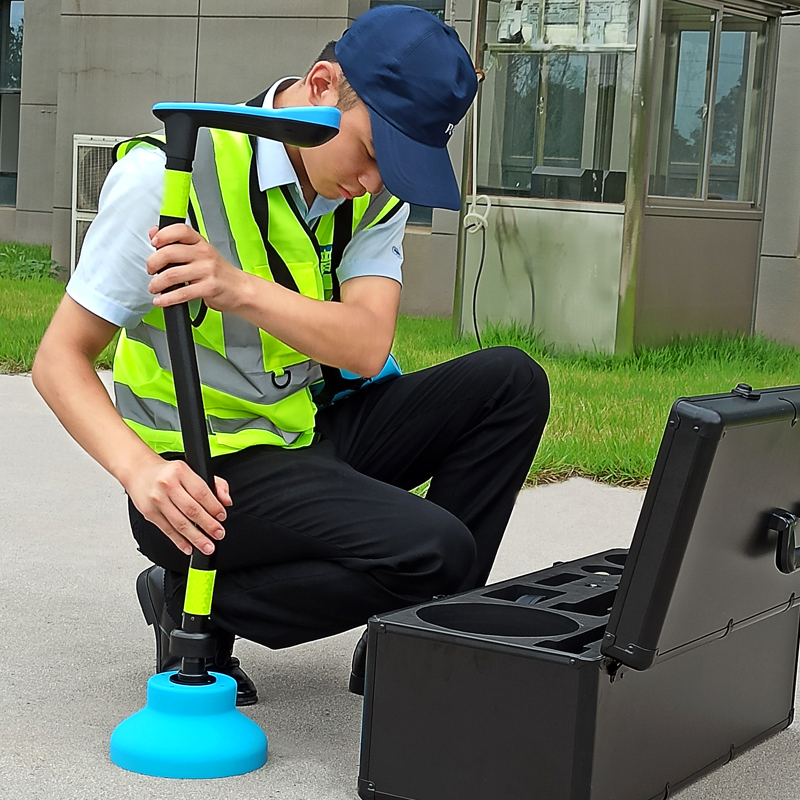

4. Configure different probe bases for rough and flat ground;
5. Equipped with night lights, night detection is more convenient;
6. The mute switch can protect the ears and hearing;
7. The gain is adjustable in 10 steps, and the headphone volume is adjustable in 10 steps;
8. The battery life is strong, and the time can reach more than 10 hours.
Model | PQ-BT Series |
Frequency | 20HZ-5000HZ |
Gain | 10 gears adjustable |
Bluetooth distance | 10m |
Brand Name | PQWT |
Detection Depth | 9 meters |
Charging time | 5 hours |
Standby time | 14 hours |
Power | ≈0.3W |
Charger | DC 5V 3A 3-port USB charger |
Battery | Rechargeable 18650 single-cell lithium battery, 3.7V, 3000mAh |
Usage | House water pipeline leak locator |
Net weight (handle) | 500g |
Net Weight (Headphones) | 187g |
Working temperature | -20℃~+50℃ |
Keyword | Water leak detection device |
Size（Wireless Controller） | 70*23.5*8.5cm |
Size（Wireless Earphone） | 17*18*7.3cm |
Hunan Puqi Water Environment Institute Co. Ltd. is a research institute specializing in researching and developing of geological exploration equipment.
