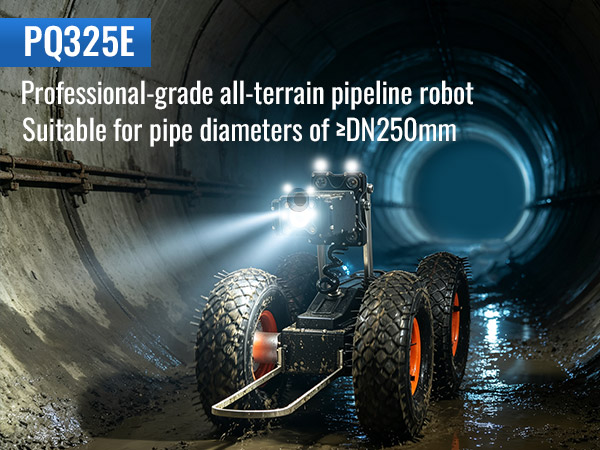

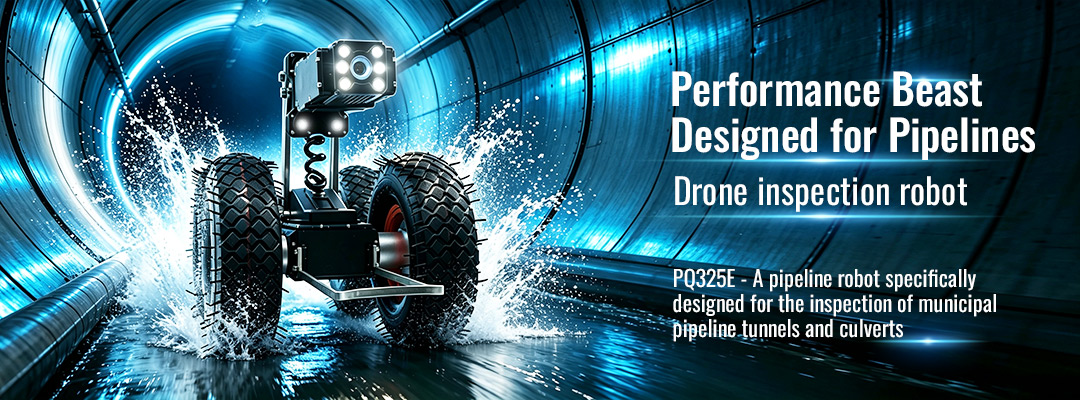

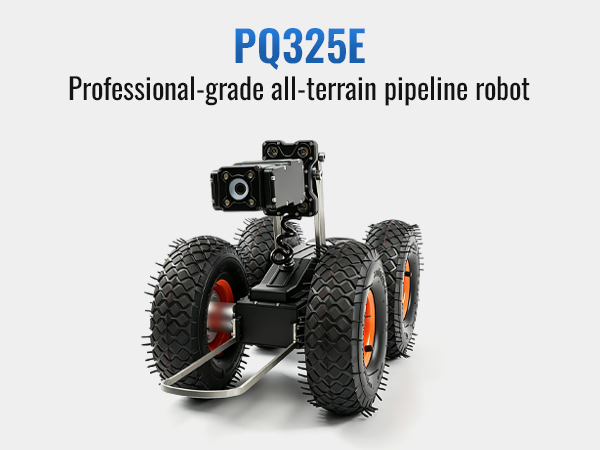

PQ325E is an automatic pipeline inspection robot specially designed for municipal pipeline network inspection. It is suitable for pipes with a diameter of ≥DN250, meets a variety of pipeline inspection needs, and supports an operating distance of up to 100 m, making it an efficient and intelligent device for pipeline inspection.

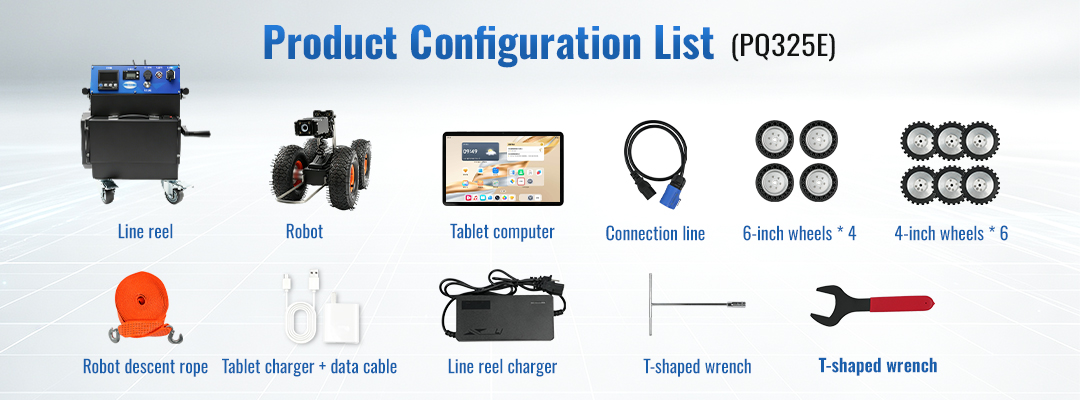

The device is equipped with a dual-motor six-wheel drive system, with an obstacle-crossing height of ≤100 mm and an obstacle-crossing angle of ≤30°. It comes with three sets of anti-slip quick-release wheels in 4-inch, 6-inch, and 10-inch sizes, allowing quick replacement to suit different pipeline environments. The body uses stainless steel anti-collision beams and handles, with an IP68 protection rating, making it waterproof, durable, and suitable for complex operating environments inside pipelines.

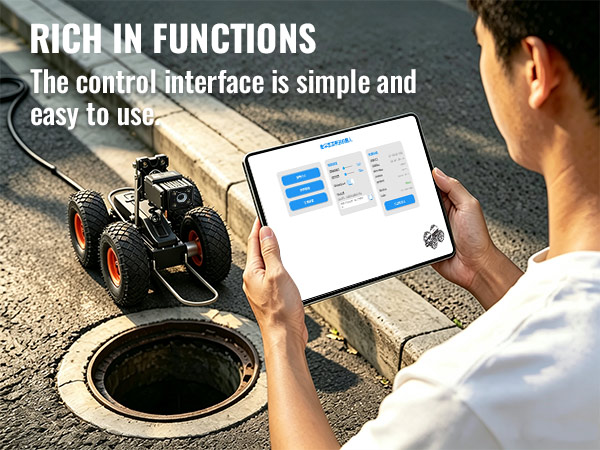

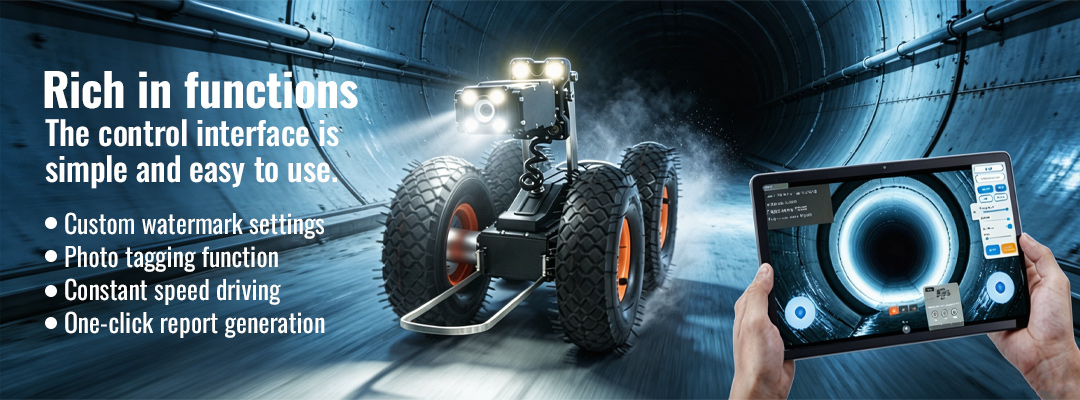

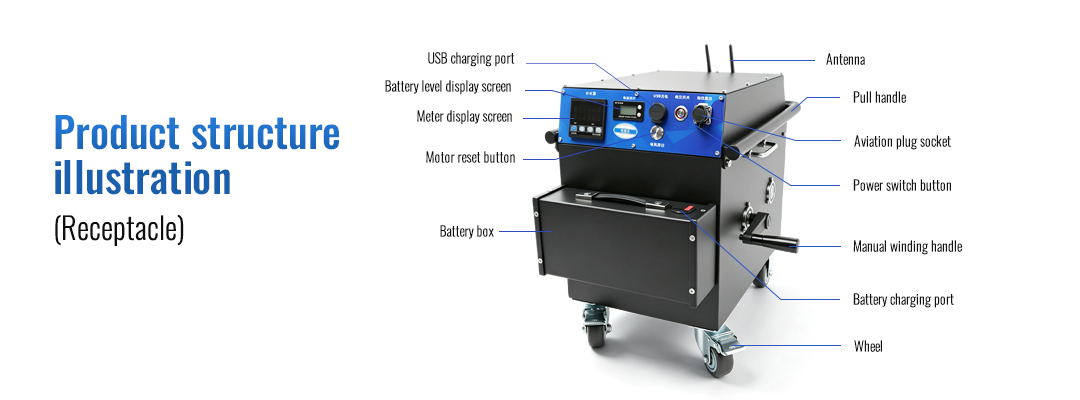

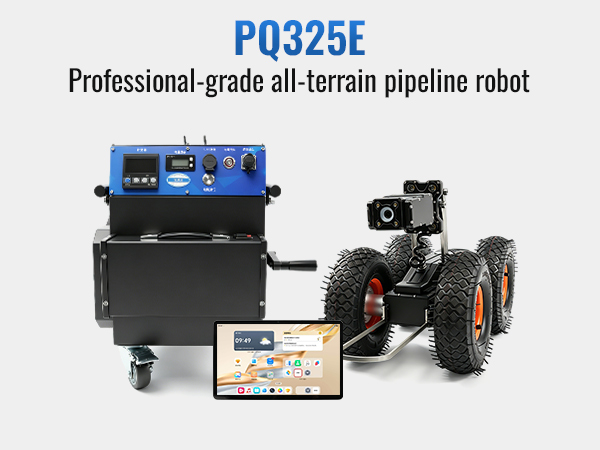

It features a powerful visual configuration with front and rear 5-megapixel cameras. The camera system supports 360° horizontal rotation, 180° radial adjustment, and 80° lifting, together with twelve 3 W fill lights, providing clear, blind-free images. It also supports one-key self-reset for convenient operation. The system is equipped with a 100 m cable reel with a tensile strength of 200 kg, supporting automatic, manual, and manual-assisted cable winding. Electronic encoder distance measurement provides accurate metering. With wireless tablet control, users can operate the device by connecting to the dedicated WiFi. It supports real-time video recording, screenshots, engineering information overlay, and complete data storage.
The cable reel is equipped with a 60 V 15 Ah battery and provides approximately 7 hours of battery life. The equipment is easy to operate and runs stably. It is widely used for municipal pipeline network inspection, including rainwater and sewage pipelines.
Application Scenarios
Used for routine maintenance and inspection to investigate structural defects, weld defects, structural conditions, foreign-object blockages, damage, and other pipeline conditions. It replaces manual inspection for high-risk and difficult tasks, ensuring that the inside of the pipeline is clear and safe.
Sewage leakage detection for environmental protection.
Completion acceptance inspection of newly built drainage systems.
Completion acceptance inspection after drainage system renovation or dredging.
Inspection of excessive unknown infiltration water or insufficient water-carrying capacity entering sewage treatment plants through drainage systems.
Investigation of causes such as pipeline siltation and poor drainage.
Inspection of mixed flow between directly dischargeable sewage and sewage requiring treatment.
Inspection of operating conditions such as corrosion, damage, joint misalignment, siltation, scaling, and collapse.
Locating hidden points where inspection openings cannot be located or pipeline directions are unclear due to drainage system or infrastructure construction impacts.
Inspection of ventilation ducts, trenches, narrow enclosed building spaces, and similar environments.
Product Features
5-megapixel camera: 1080P image resolution
≥DN250: suitable for pipes of ≥DN250 mm
Three sets of wheels: wider application scenarios

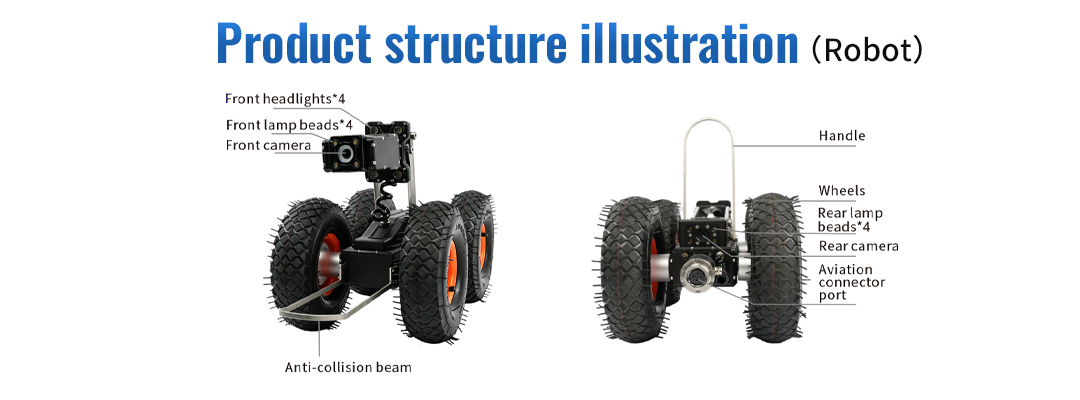

Flexible dual cameras: front and rear cameras; the front camera can lift and rotate up, down, left, and right

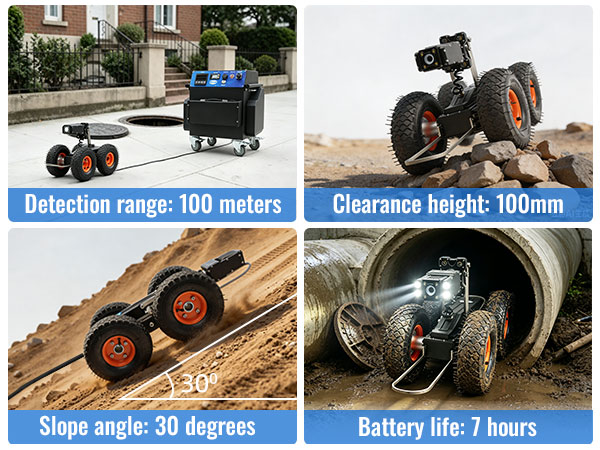

Strong power and obstacle-crossing ability: obstacle-crossing height ≤100 mm, obstacle-crossing angle ≤30°
High protection and durability: stainless steel anti-collision beams and handles, IP68 protection rating
Main Specifications
| Product model | PQ325E |
|---|---|
| Applicable pipe diameter | (4-inch wheels) ≥DN250 pipes |
| Wheels | 4 in / 6 in / 10 in |
| Inspection distance | ≤100 m |
| Waterproof rating | IP68 |
| Camera | Front adjustable camera and rear fixed camera, 5 megapixels |
| Number of cameras | 2 |
| Camera rotation | Electric lifting platform horizontal angle: 360°; radial angle: 180°; lifting angle: 80°; lifting height: 178 mm |
| Number of lights | 3 W × 12 fill lights |
| Drive system | Dual-motor six-wheel drive system |
| Anti-collision beam | Stainless steel |
| Handle | Stainless steel |
| Obstacle-crossing capability | ≤100 mm |
| Climbing angle | 30° |
| Controller | 11-inch touch-control tablet |
| Cable reel functions | Automatic winding / manual winding / manual-assisted winding |
| Cable tensile strength | 200 kg |
| Cable reel to robot communication | Wired transmission |
| Cable reel to controller communication | WiFi transmission |
| Distance measurement | Electronic encoder distance measurement |
| Reset | One-key self-reset function |
| Built-in battery | 60 V / 15 Ah |
| Operating temperature | -20°C to 55°C |
| Charging time | 8 hours |
| Battery life | 7 hours |
| Product weight | Robot body: 13.7 kg (4-inch wheels), 17.95 kg (6-inch wheels), 19.4 kg (10-inch wheels); cable reel: 53.6 kg |
| Product dimensions | Robot body: 760 × 175 × 155 mm (4-inch wheels), 760 × 242 × 175 mm (6-inch wheels), 760 × 345 × 255 mm (10-inch wheels); cable reel: 640 × 428 × 532 mm |
| Language support | Chinese / English, switched with the system |
| Storage environment | Store at room temperature in a dry and cool place |
